W7GJ
CHECKLIST
& TIPS FOR SUCCESSFUL
50
MHZ EME CONTACTS USING JT65 MODE
INTRODUCTION
-
Why EME on 6m?
-
Independent of high geomagnetic latitude, which makes TE, F2 infrequent
and/or impossible
-
Declining solar cycle further reduces chances for ionospheric
propagation
-
Makes up for unfavorable geographic location which does not provide
effective
Es links to ionospheric propagation, or has poor horizon
-
Provides another avenue for working new DXCC countries
-
Provides another way for DXCC countries to complete WAS
-
3/4 million kilometer path - the Ultimate DX!
-
The technical and operating challenge!
-
6m EME Characteristics
-
Rapid Faraday rotation (typically 10-15 minutes)
-
Short signal peaks
-
VERY weak signals
-
Unpredictable Conditions (even when best times of the month are
selected
for activity)
-
New Developments Make 6m EME viable
-
New generation of computer-optimized antennas for higher gain
-
Commercial HF amplifiers beginning to include the 6m band (Yaesu, Icom,
Acom, etc..) so it is easier to run 1 kw on 6m
- WSJT program's JT44 Mode offers more than 15 dB sensitivity
compared to CW
- New improved JT65 Mode offers several additional dB
advantage, and is even easier to use
- JT65A mode is now the standard for 6m EME, since it is the
most sensitive of the JT65 modes
- Usually, JT65 signals weaker than -22 dB are not heard in the
speaker at all. JT65 can process signals 8 to 10 dB weaker
than that level
- No-signal RF level (background noise) shown by JT65 is
usually around -33 dB
-
6m now available in most of Europe (but many countries still have
restrictive power/ERP limits)
-
Japanese hams (very active on 6m and in DXpeditioning) are permitted to
operate 6m EME with JT65 beginning in January, 2004
- Examples Shown Here
- The JT65A example screens shown here were generated by using
.wav files saved during actual contacts
- Because the JT65A screens were not taken at the time of the
contact, the actual computer clock times and moon/sun positions shown
do not corrspond with the times of the .wav files
- If you would find it helpful to experiment by loading an actual
JT65A .wav file (inaudible signal at Sync 2, -23 dB signal strength) of callsigns and reports from W1JJ, you can download it here
STATION REQUIREMENTS
-
Station EME Calculator
-
Provides a way to assess your system and determine who you can run a
sked
with
-
Found on the WSJT "ECHO MODE" screen:
-
If you can detect your own ECHO MODE echoes louder than "-33 dB" during
an optimum time of month, you should be able to complete with W7GJ
-
Antennas
-
14 dBd seems to be a good target size for a "real" EME antenna
-
This size antenna is capable of contacting other similarly sized
stations
(provided each has 1000w)
-
Additional ground gain (while pointing on the horizon) counts toward
the
14 dBd gain figure
-
Most 6m stations only have antennas aimed at the horizon (which is
fortunate,
since small antennas NEED the extra 3-5 dB ground gain)
-
Examples of minimum sized (approximately 13-14 dBd) 6m EME antennas
include:
-
M-Squared 6M7JHV yagi (31' long boom) aimed on the horizon (with ground
gain)
-
M-Squared 6M11JKV yagi (69' long boom) aimed skyward (without ground
gain)
-
Examples of next larger class of antennas (approximately 15-15.5 dBd)
are:
-
One M-Squared 6M7NAN yagi (41' long boom) aimed on the horizon (with
ground
gain)
-
Two M-Squared 6M9KHW yagis (49.5' long booms) aimed skyward (without
ground
gain)
-
Four M-Squared 6M5X yagis (18' long booms) aimed skyward (without
ground
gain)
-
Recommend putting up the largest single yagi possible, as high as
possible
(unless building a fully steerable 4 yagi array)
-
Low loss feedline is very important (and fortunately, the loss at 50
MHz
is not very high)
-
Low Noise External Preamplifier
-
Useful at quiet times of month
-
Overcomes high receiver noise figure
-
Usually used in the shack (unless transmission line loss exceeds 1 dB)
-
Learning JT65
- Program appearance very similar, but much more user friendly
than previous JT44
- Still some tricks to get the last few dB of sensitivity from
the program
-
Computer does NOT simply do all the work for you - experienced operator
involvement is required
-
Essential to practice locally with other stations before trying JT65 on
an actual EME sked
- Requires 1 minute sequences (approximately 46 seconds of actual
key-down time).
- Amplifier
- Important to run as much power as possible, since there are so
many factors that can interfere with 6m EME signals
- May require extra cooling to accomodate the long key-down
periods
8877
Amplifiers at W7GJ (2m, left and 6m, right). Notice the high
volume "muffin fans" mounted on top of the amps to "suck" air out of
the final compartments, thereby reducing back pressure on the blowers
and increasing air flow through the tube.
SCHEDULING
-
Choose "Best Time of Month"
-
6m EME is challenging even under most optimum conditions
-
Minimize predictable "Degredation"
-
Distance to the moon
-
Sky temperature behind the moon
-
Frequencies mutually agreed to in advance to avoid birdies and QRM
(usually
above 50.200)
-
Avoid "Interfering Factors" (strongest when aimed on the horizon)
-
Tropo ducting
-
F2 (watch time of day and direction)
-
High K index
-
High A index
-
Ground Gain
-
Single beams usually have two (at least) good ground gain lobes
-
Elevation and number of ground gain lobes depends on height of antenna
above ground
-
Two examples
for different height antennas
-
Upper Ground Gain Lobe(s) often better
-
Avoids local obstructions
-
Beams through less atmosphere
-
Provides additional chances to complete contact
-
Multiple Common Window Opportunities (even for horizon-only stations)
-
Changing moon declination throughout the month provides common horizon
windows with many places on earth
-
Moonrise-Moonrise, Moonset-Moonset, Moonset-Moonrise., Moonrise-Moonset
options
-
Adding Second Ground Gain Lobe further extends the number of common
window
possibilities
JT65 SETUP
-
Computer Required
- Windows Operating system with sound card
- Speed of at least 200 MHz recommended
-
Computer interface required for PTT and sound card audio lines (typical
PSK31 interface is fine)
-
Accurate Computer Clock Timing Essential (to within .5 second)
-
Programs updating time automatically through the Internet (such as
Dimension
4)
-
GPS units best for remote locations without Internet access
-
Receiver
-
Flat audio output between 1200 and 1800 Hz
-
Widest USB IF filters
-
Disable any "tone control" or audio filtering
-
AGC OFF (if possible)
-
Audio Level
-
JT65 screen should register zero dB or very close
-
Adjust level with RCVR volume control and/or Windows computer sound
card
recording level control
-
Specify Station to be Called
-
Enter callsign in "TO RADIO" window on left side of the JT65 window
- You also must enter the other stations 6 character grid locator
in the window to the right of the "TO RADIO" window
-
If callsign is included in the file "CALLSIGN.TXT", you can also press
the "LOOKUP" button to automatically enter station's grid locator
- If the station is not listed in your "CALLSIGN.TXT" file, you
can press "ADD" to include the call and locator for future reference.
-
Select Proper Transmitting Sequence and Mode
-
Shown on the right hand side of the JT65 window
-
Agreed upon in advance
-
Select Standard Message Text Generation
-
Automatically formats messages with grid locator included, for maximum
encoding sensitivity
-
SYNC Levels - Indicate reliability of the decoding
-
Act as a "Threshold" level for accumulating callsigns into the
lower Average Message window
-
Usually set to Sync 1 for weak signals, but you must watch DT and DF carefully for "false" decodes when SYNC is less than 2
- AUTO ON/OFF
- Button must be pressed to ON in order to begin transmitting and
receiving actual signals
-

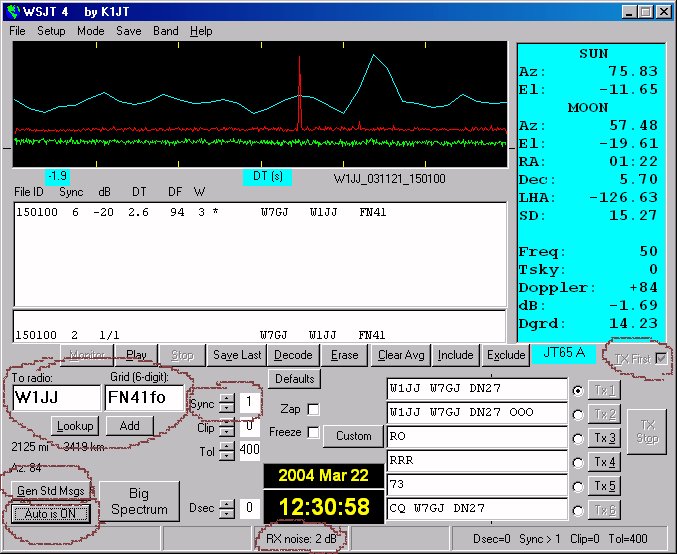

Typical Example of Proper Setup

-
JT65 screen shows proper audio levels (as indicated by the display in
the
lower center of the screen as well as the green audio input (lined up
with
the small "tick marks" on both sides of the JT65 signal window)
- Station to be called (W1JJ in this case) is entered in the "To
Radio" box, along with the 6 digit grid locator
-
"Gen Std Msgs" button has been pushed to create the proper messages
shown
-

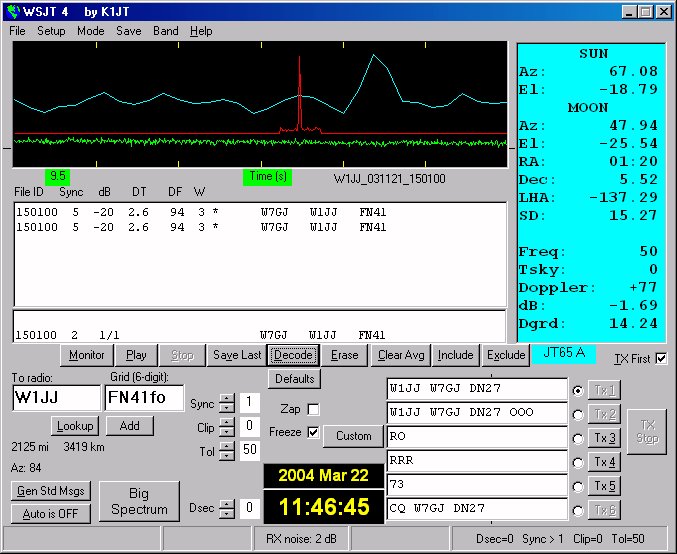

Note also the typical "DT" for the message received, showing it was
indeed
a signal delayed by the path distance to the moon and back (should show
approximately 3 second delay if both computer clocks are properly
set)
ACTUAL JT65 OPERATION
-
Do not change receiver frequency (during receive sequence)
-

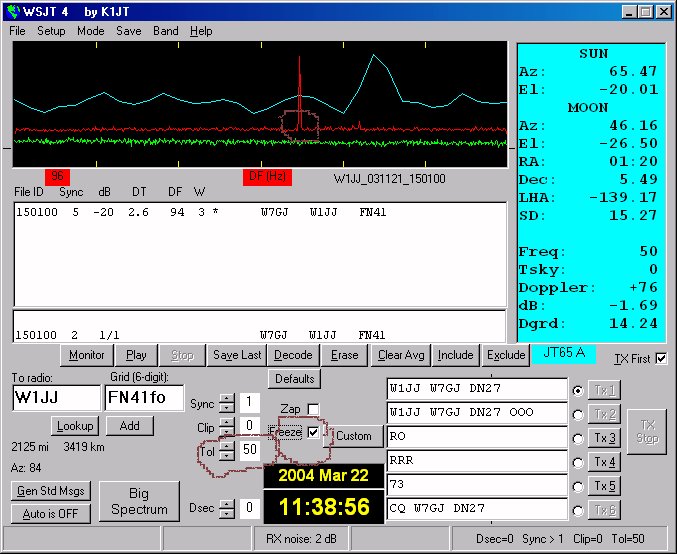

Do not change transmitter frequency after beginning to transmit (the
other station may already have a narrow FREEZE filter on your signal)
-
Weak Birdies/Multiple Stations Can be Viewed (carrier birdies or JT65
sync
tone) on slow waterfall displays
-
Big Spectrum (WSJT version 3.8.1 and later) provides summary of what
has
been processed during receiver period
-

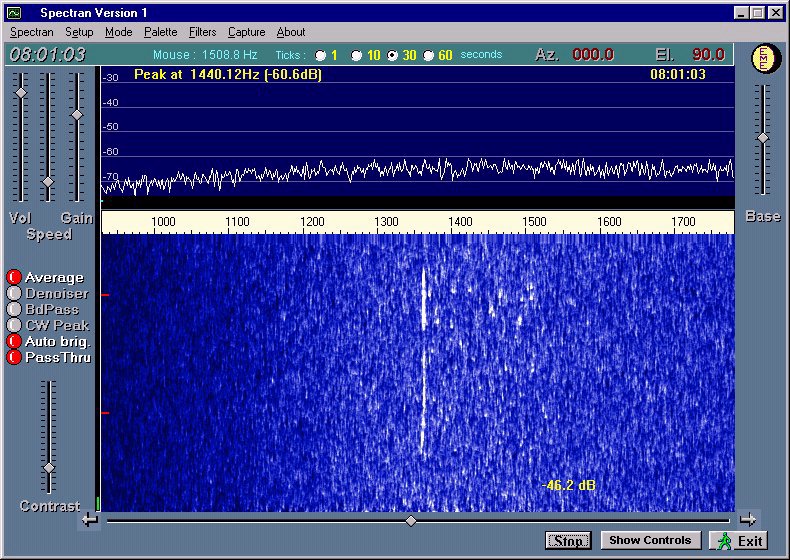

SPECTRAN program
provides sensitive
spectral display, but requires second computer for real time monitoring:

Above image shows JT65A callsign message being sent from
W1JJ. The strong sync tone clearly shows where the signal
is, and where the narrow JT65 "FREEZE" filter safely can be set.
Usually, most signals that can be seen on Spectran are detected by JT65
. JT65 signals weaker than -20 dB are usually not heard in the
speaker; background noise level for JT65 is usually -33 dB..
- Other Station's Moon Position
- Moon position of the "TO RADIO" station can be displayed
instead of the position of the sun
- Click on the sun position display with the mouse to display
moon position instead
- Clicking again restores the sun position information
- Simple Callsign Messages
-
Usually stronger than -25 dB for reliable individual decode
-
Shown sequentially in the upper JT65 window
- Callsigns accumulate to the AVERAGE shown in the lower window
if there is a "*" shown after the message
- Message #1 must be selected by clicking in the circle to the
right of the message prior to beginning your XMIT period
- Callsign and Reports Messages
- Same senstivity as simple callsigns alone, due to the fact that
the messages are encoded differently to indicate reports are also being
sent
- Shown sequentially in the upper JT65 window
- Callsigns accumulate to the AVERAGE shown in the lower window
if there is a "#" shown after the message
- The reports of "OOO" will only be shown in the upper
(individual messages) window, so be sure to watch there for reception
of the reports
- Message #2 must be selected by clicking in the circle to the
right of the message prior to beginning your XMIT period

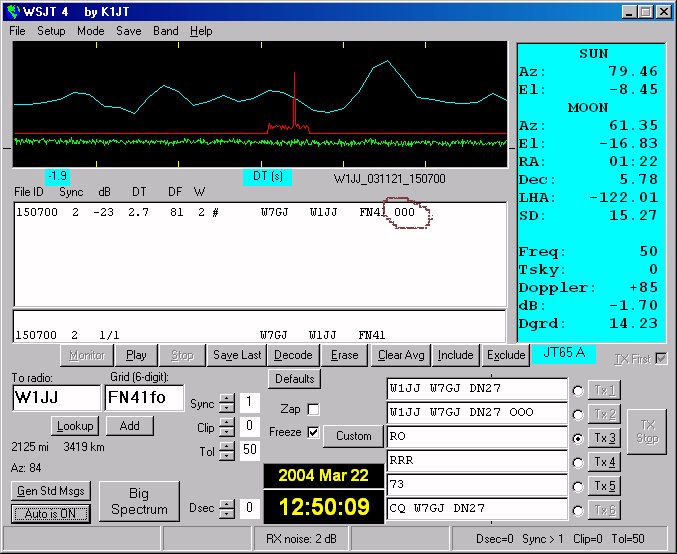

Receiving
reports from W1JJ. Note that the calls contribute to the lower
AVERAGE window, but the OOO reports are only shown in the upper window.

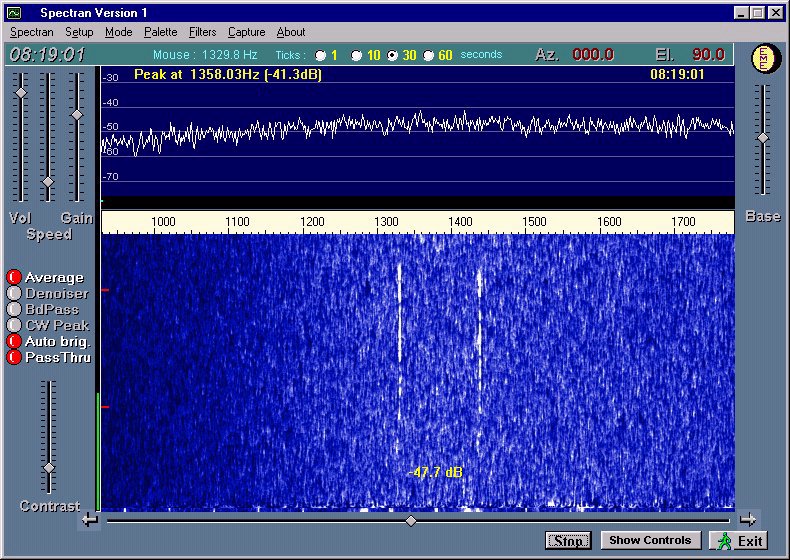

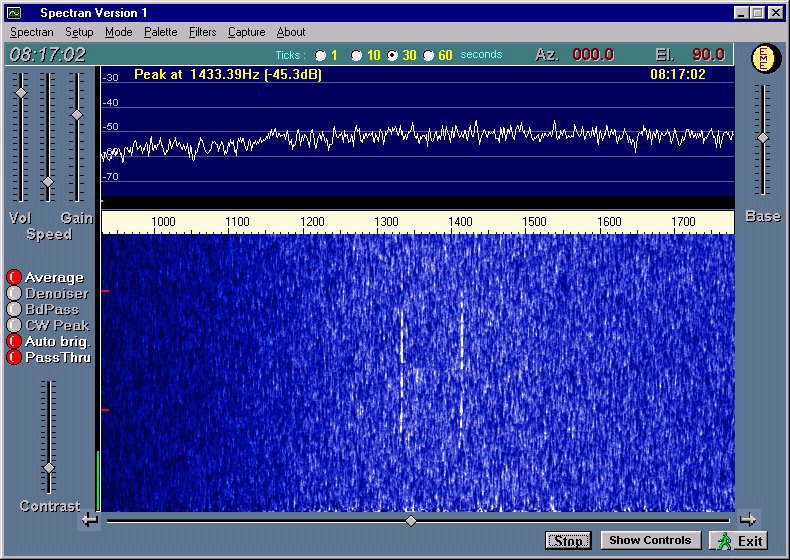

- "Shorthand" Messages
- Shown only in the upper JT65 window, and do not accrue to the
AVERAGE, so be sure to watch there for reception of these
- "RO", "RR" and "73" are "shorthand" messages and are not
decoded in the normal way
- Utilize the sync tone plus one other tone at different tone
spacings to indicate these messages
JT65A
JT65B
JT65C
- RO
53.8 Hz 107.7 Hz 215.3
Hz
- RRR
80.8 Hz 161.5 Hz 323.0
Hz
- 73
107.7 Hz 215.3 Hz 430.7
Hz
- Can be accurately decoded by JT65 even if signals are as weak
as -30 dB
- Do not depend on your SYNC setting
- Appropriate message can be selected by clicking in the circle
to the right of the message prior to beginning your XMIT period
- Any of these messages can be selected DURING your XMIT
period. This permits changing your message immediately upon
noticing decoding of the appropriate incoming message from the other
station. To change the message DURING your XMIT period, you must
press the "TX#" button to the right of the indicator circle.
- Because of the distinctive frequency splits, can be
easily decoded visually by watching with a program such as
Spectran
Spectran
display of RO being received from W1JJ on JT65A mode.
Spectran
display of RR being received from W1JJ on JT65A mode.

Spectran
display of 73 being received from W1JJ on JT65A mode.
- Message Average
-
Single line shown in the lower section of the main JT65 window
-
Averages all callsign messages that exceed the SYNC threshold set by
the user
-
Can accumulate an average of much weaker messages
- Usually, nothing appears here until program has accumulated what
it believes is the correct message
-
Remember to press "CLEAR AVG" when you begin receiving a new
(different)
message, or the average line will just become increasingly garbled
- Only non-"shorthand" messages are included in the average
window, so
you can continue to accumulate callsigns in the average window, even if
the other station is sending calls plus OOO reports.
-
CLIP function
-
Reduces effects from static crashes but sacrifices some sensitivity
-
Normally set at zero
-
ZAP function
-
Reduces effects from birdies but can sometimes cause a small loss in sensitivity
-
Normally set at zero
-
FREEZE filter
-
Used to filter out birdies and/or separate multiple stations
-
Filter width adjusted by changing the TOL setting
-
Increases JT65 sensitivity slightly
- Must first make sure you know the frequency of the other
station. If signal is strong
enough, a spike will be shown at the frequency of the SYNC signal,
shown
on the RED JT65 line
- Set FREEZE filter by moving mouse to peak on RED line (until
the units
values under the graph turn red), click on the spike, and then check
the
FREEZE box. (above the date and time display near the bottom of the
JT65
screen).

The above image shows setting up a FREEZE filter with a TOL
of 50 Hz after clicking on the spike in the red line. Note that
no filter had previously been used to receive the signal.

The above image shows the signal decoded again with the FREEZE
filter set up.
- Necessary to invoke the FREEZE filter (with TOL less than 100)
to eliminate a "?", and properly decode shorthand messages
Receipt
of RO from W1JJ without FREEZE filter activated. Note the "?"
after the message.
.
Receipt
of RO from W1JJ re-decoded with FREEZE filter activated and TOL
set to 100. Note "clean" RO message and the meaningless DT
for the shorthand message.
- Watch DT and DF (values shown just to the left of each
received message) to decide if you should INCLUDE or EXCLUDE an
individual message
from
the lower Average Message window
-
The lower you set the SYNC threshold, the closer you must watch DT and
DF values to make sure you are decoding a "real" message
-
DT should indicate an appropriate delay by the trip to the moon and
back
(typically around 3 seconds)
- DT values displayed for shorthand messages do not reflect the
actual time delay to the moon and back
-
DF should show consistent frequency difference (unless you have changed
your receiver tuning)
- The W parameter should be within a few Hz for successful synchronization
- Of course, a good clean outgoing signal SHOULD have a narrow tone width
- Width of the signal can vary depending on multipath or ionospheric aberrations
REFERENCES
CONCLUSION
-
Examples of some of the successful W7GJ contacts with single yagi DXpedition
stations include:
-
CY9DH
-
ES8X
- 3V8SS
- IS0/I0JU
- OX3LX
- KH0/KH2K
- GJ8BCG/P
- J68AS
- ST2RS
- YA1RS
- 4X/ZL1RS
- FP/N6RA
WSJT VERSION 5.9.2
Since the above page was prepared, a
newer, much improved version of JT65 was developed and included in WSJT
version 5.9.2. A checklist of suggestions for using this improved
version can be found at:
http://www.bigskyspaces.com/w7gj/JT65.txt
This page last updated on 21 January, 2006
